Mold Structure Exploded Animation for Tooling Review

Mr. Liu· Engineering DirectorAugust 28, 2026

This Reel uses an exploded animation to show how mold plates and internal elements relate within a tooling assembly. For a buyer, the animation is most useful as a review aid: it helps teams discuss parting strategy, access, interfaces, moving elements and the information a supplier needs before a project-specific tooling proposal can be evaluated. The visual is not a substitute for released CAD, drawings or agreed acceptance requirements. Use it to organize design questions, then submit the controlled part data, material, quantity, surface expectations and validation needs for engineering review.

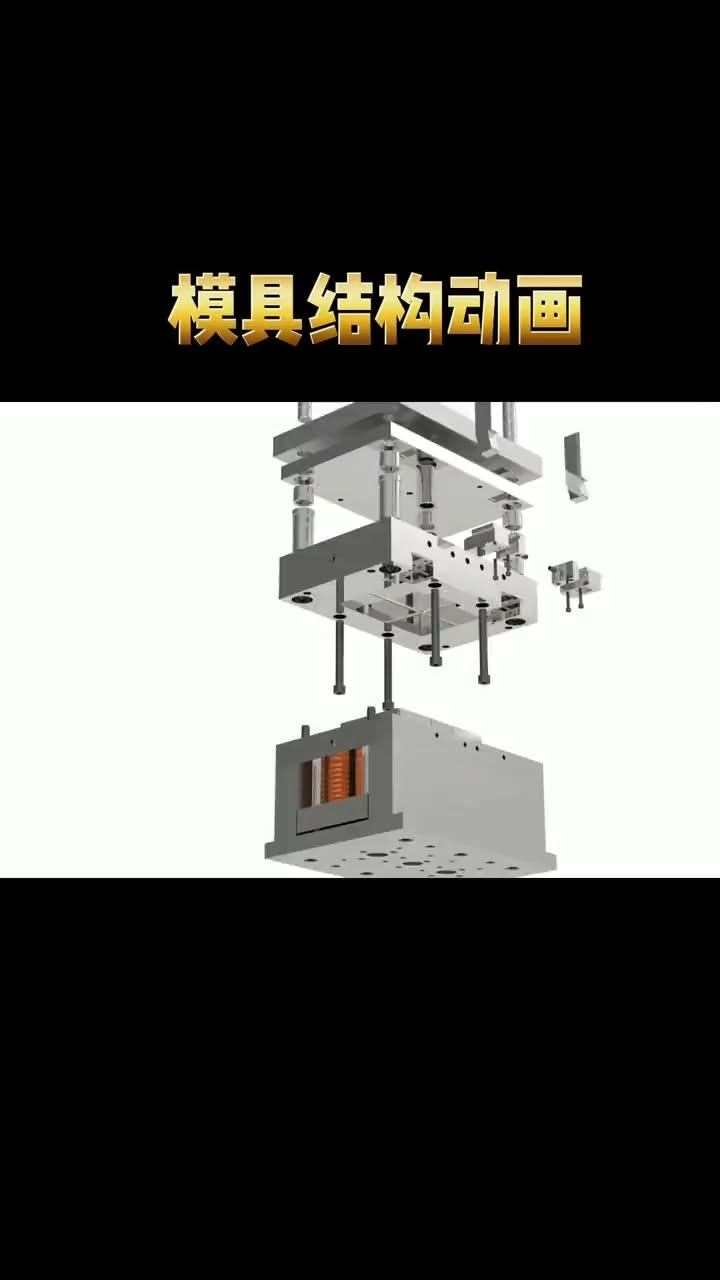

Frame from a mold structure exploded animation showing separated tooling plates and components — Frame captured from this Sendot Technology video.

Watch the original video on Facebook

Direct answer

How can an exploded mold animation help a tooling buyer? An exploded animation separates the mold into visible layers so buyers and suppliers can discuss component relationships, interfaces, access, moving elements and parting questions. It is a communication aid for review and RFQ preparation; released CAD, controlled drawings, project requirements and buyer approval still govern the tooling design and acceptance criteria.

What the exploded mold animation communicates

The separated layers make the relationship between the upper and lower sections easier to discuss than a closed assembly view. Buyers can use that view to identify questions about interfaces, motion, access and the intended molding sequence before requesting rapid tooling.

What belongs in the tooling review package

Pair the part model with a controlled drawing, intended material, expected order quantity, cosmetic zones and validation requirements. Design and engineering verification can then separate supplier feedback from the buyer's final design release and acceptance approval.

Explore similar manufacturing options

Use these routes to move from a structural concept to a project-specific tooling review:

Rapid Tooling — Primary tooling service
Aluminum Mold Tooling — Related rapid-tooling option
Design and Engineering Verification — Design-review application

Technical specifications and sourcing inputs

Attribute	Current video or sourcing definition	Source and scope
Media format	Exploded mold-structure animation	Original Reel description and footage Video-specific
Visual subject	Separated mold plates and assembly elements	Original Reel footage Video-specific
Review purpose	Visualize component relationships within the assembly	Original Reel footage Video-specific
Part geometry and revision	Provide released CAD and controlled drawing	Buyer project package Project input
Part material and quantity	Define for the specific project	Buyer RFQ Project input
Validation and acceptance	Agree per drawing and order	Buyer and supplier agreement Project input

Exploded animation vs controlled tooling package

Review need	Exploded animation	Controlled tooling package
Assembly relationships	Makes layers and interfaces easier to discuss	Defines released geometry and revision
Dimensions and tolerances	Provides visual context	Carries measurable requirements
Material and quantity	Supports the discussion	Records project-specific inputs
Approval and acceptance	Helps identify open questions	Documents agreed responsibilities and criteria

Tooling review flow from concept to RFQ

Observe: Use the exploded view to identify interfaces, motion and access questions.
Define: Prepare controlled part data, material, quantity and surface requirements.
Review: Ask the supplier to assess manufacturability and record open assumptions.
Approve: Resolve changes and deviations through the buyer's design-release process.
Order: Agree the tooling scope, validation needs and acceptance terms per order.

Questions to resolve before requesting a tooling quote

Which CAD model and drawing revision controls the request?
What part material, finish and cosmetic zones apply?
Which surfaces, interfaces or actions are critical to function?
What quantity and validation evidence should the supplier evaluate?
Who provides final approval for design changes, deviations and acceptance?

Record open items explicitly so the tooling proposal can be reviewed against the same project inputs.

Frequently asked questions

Does an exploded animation define the final mold design?

No. It supports structural discussion, while the released CAD, controlled drawings and project approvals define the design used for the order.

What files should accompany a rapid-tooling RFQ?

Provide the current 3D model, controlled drawing and revision, plus material, quantity, surface and validation requirements.

Who approves supplier DFM suggestions?

The buyer's authorized design owner should approve any design change, deviation or revised acceptance requirement before release.

Can tooling cost be estimated from the animation alone?

A project-specific review also needs part geometry, material, quantity, tooling scope, surface expectations and validation requirements.

What should be agreed before tooling begins?

Agree the controlled revision, tooling scope, responsibilities, validation plan, acceptance criteria and handling of future changes.
