Aluminum Mold Making For Plastic Injection
We combine traditional injection molding methods with aluminum tooling to deliver plastic molded parts in 3 weeks or less, with the same high precision, complex designs, custom surface finishes and textures.
Why Aluminium Injection Mold?
Conventional steel tooling is normally used for producing millions of parts, however, what if production demands call for smaller quantities?
As steel mold often takes months to manufacture and large initial capital investment, in the last few decades, pressures to shorten the cycle time for both making the mold cheaper and molding parts quicker to market has driven the interest in an aluminum injection mold to a new level. With today’s improved grades of aluminum outstanding hardness and strength for increased mold life, aluminum mold can be not just for a prototype or the bridge to a faster product launch, but also it can be a successful alternative to steel tooling with huge benefits that will continue to advance and influence the future of the plastics industry.
If you don’t request millions of parts, if you need to produce parts on-demand in a quick turn, and if you want to avoid risky tooling investments until your part design is truly validated, low volume injection molding using aluminum molds may be a best approach.
Plastic Injection: Aluminum Mold Vs. Steel Mold
There are a variety of benefits of aluminum molds over steel molds, which translates to a critical advantage for our customers. Aluminum provides excellent machinability, faster machining, less cycle time, more readily adaptable to engineering changes, tight tolerances, and consistent process, and reduced production costs. Now, anything you do in a traditional P20 mold can be done in an aluminum mold.

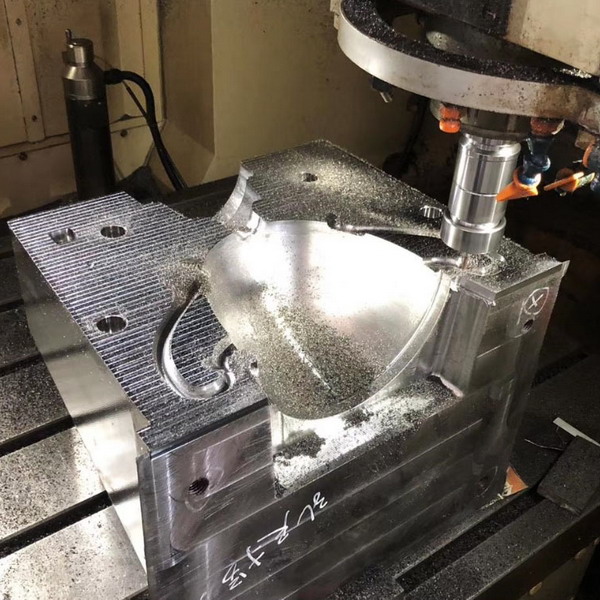

Aluminum offers excellent machinability with small chips, few burrs, fast CNC feeds, 5 to 10 times faster machining and EDM than steel, and the ability to provide faster finishing and polishing times, so molds can be built in less time.
Aluminum tooling cavities conduct heat nearly five times faster than P-20 tool steel. Quicker cooling generally means substantially reduced cycle time and faster parts and allows us to process without machining some cooling channels this also reduced mold building time.
Usually, the weight of aluminum mold is one-third of the steel mold, which is easy to operate; fast and efficient machinability makes aluminum machining easier and tool loss lower; simplified cooling system and mold structure make the production efficiency much higher. These directly or indirectly reduce the overall production cost.
Aluminum tooling can evenly dissipates heat, which offers a more consistent mold temperature, improve dimensional stability in tooling. This significantly reduces warpage and produces less waste during the production process.
Aluminum tools always play as a bridge to a faster product launch due to aluminum mold core/cavities and inserts being more flexible and easier to machine than steel, so iterative design changes or creating modifications are typically less burdensome and less cost impact.
We are committed to manufacturing high-performance aluminum injection molds, molded parts and continually improving our processes to build better molds faster and at a lower cost in order to provide high-value solutions to our customers.
How to Build Aluminium Tooling Quick and Low Cost?
Can you imagine making an aluminum mold and delivering hundreds of plastic parts in just three weeks? From mold design to mold built, our design team is devoted to developing a cost-effective and quick turn-around aluminum tooling approach:
Generally, avoid making an overly complex mold with lifters and sliders, and use hand-load inserts instead of automatic inserts. For prototypes and low volume production, due to the volume of the moldings and the cycle time of loading and unloading the inserts, this was the more cost-effective option.
For aluminum tooling, all cavities are designed based on the use of stock mold base, which means we don’t have to spend time and money ordering new ones, which in turn helps to reduce lead times and save money to meet our customers’ budgets.
For some complex aluminum mold core to make it as one piece always has taken a long time to mill using a 5-axis machine. However, when we split it into a few pieces by section machining, we can use two or three machines to make these pieces, which reduced the time by more than half without sacrificing quality.
Finish Options for Aluminum Tooling
Aluminum mold can be polished or textured，it can be polished to a near SPI #2 finish，possible to get a Class A surface finish on an optical component. With few exceptions, any texture added to a steel mold can be added to any aluminum mold.

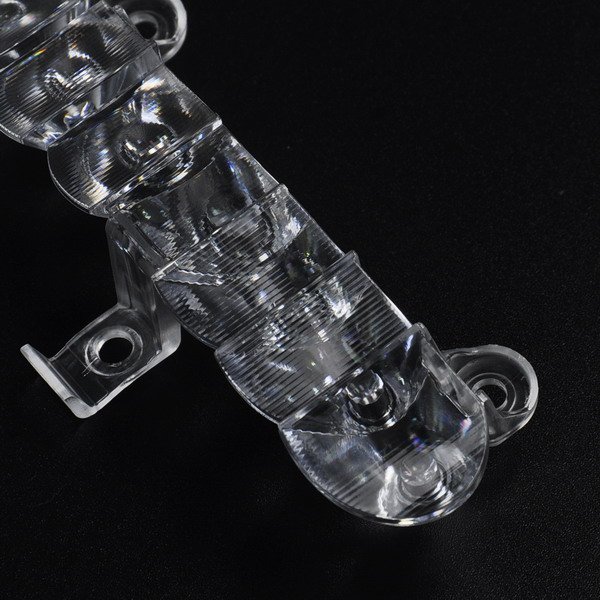

Class A surface finish is usually used for optical components such as clear lenses, light pipes, light guides and prisms made from materials such as acrylic and polycarbonate. Even these clear plastic components with complex optical details and highest level of surface quality are not impossible to expect from aluminum tooling. For example, hard coating aluminum molds with electroless nickel adds additional hardness and corrosion resistance, polishes extremely well to a Class A surface finish, and protects the integrity and extends the life of the mold.
Have a complex part design, with tight tolerances, and various surface finishes and textures? Don’t worry. Our aluminum tooling process can handle it and we won’t ask you to change any things, and allow you to reach the market the fastest with the least amount of cost.
Frequently Asked Questions
What is aluminum mold making?
Aluminum mold making produces injection molds from aluminum instead of steel, delivering tooling faster and at lower cost for prototypes and low-to-mid volume production.
Why choose aluminum molds over steel molds?
Aluminum machines faster and conducts heat better, so molds are built in less time, cost less, and can cycle quickly — ideal for bridge and low-volume production.
How many parts can an aluminum mold produce?
Typically several thousand up to around 100,000 shots depending on resin, geometry, and maintenance.
What plastics can be injection molded with aluminum tooling?
ABS, PC, PP, PA (nylon), POM, TPU, PC/ABS, and glass-filled grades, among others.
What is the lead time for an aluminum mold?
Aluminum molds are commonly completed in 2–4 weeks, versus 6–12 weeks for hardened steel tooling.
How does the cost compare with steel tooling?
Aluminum tooling typically costs significantly less than steel, lowering the entry cost for injection-molded parts and design validation.
What part sizes can you mold?
From small components to medium enclosures; share your part size and we will confirm tonnage and mold feasibility.
How do I start an aluminum mold project?
Send your part CAD, material, and target quantity on Request a Quote; we recommend the tooling approach and quote cost and lead time.
